A touchcomputer is an integrated touchscreen and computer. These units are compact. (Like the units that they use at restaurants.)

A touchscreen is computer monitor that is responsive to touching the screen display. It needs to be connected to a computer.

NOTE: Regular computers and monitors are OK too! You can just "mouse" instead of touch, ... and you can always upgrade later!

CLOSE

RS232 Serial Interface

RS 232 InterfaceIn telecommunications, RS-232 (Recommended Standard 232) is a standard for serial binary data signals connecting between a DTE (Data terminal equipment) and a DCE (Data Circuit-terminating Equipment). It is commonly used in computer serial ports.

The Ohaus electronic scales that are compatible with xGEL LabMate will have a Serial Interface output and a special data cable that is available from Ohaus. USE ONLY AN OHAUS CABLE.

The Ohaus data cable has a connector that looks like the picture. One end (marked Scale) will hook into the scale's serial port and the other end will connect to the touchcomputer's serial port.

CLOSE

* For gINT Users - The xGEL LabMate™ gINT .gpj and MS Access .mbd export files have the same data field naming conventions as the generic gINT data template gint_std_us_lab.gdt. If your existing gINT template uses these same table and field names, you can import xGEL's gINT .gpj, and MS Access formatted .mdb lab data file directly into your gINT software. If your gINT template has different field names, then you can create a correspondence file using gINT's really cool Correspondence Utility.

See a list of the Tables and Fields, (and their names) used by xGEL LabMate™ which need to correspond to the Tables and Fields, (and their names) in the gINT data template that your firm uses. Warning: Get ready for Geek Talk!

CLOSE

** The .csv file only has the lab testing data summary. It does not include all the raw data like the MS Access .mdb file does. It was included in the software as a bonus feature.

CLOSE

xGEL LabMate™ - Where the Magic Happens
Geotech Lab Data Direct From Scale to Boring Log Software - Instantly

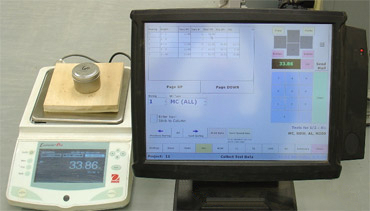

Typical xGEL LabMate Pro setup showing an electronic data collection form and a weigh-in of a moisture sample. Data from here goes directly to Excel® or gINT®. No Pencils - No Typing


xGEL LabMate™ software is the way to get soils lab data out the door ... FAST.

When loaded onto an ordinary computer connected to a compatible electronic scale, xGEL LabMate™ can:

  • Automatically set up your electronic testing forms
  • Automatically capture the data readout from the scale
  • Put your data in the proper place
  • Do your lab calculations in real time, and
  • Export the data to gINT, Excel, or other compatible boring log software

Automatic feed of the weight data directly to the computer eliminates the manual recording of test data on paper forms and the need to later key that data into gINT®, Excel®, or other software used in the lab - a double savings in time.

With xGEL LabMate™ you get:

All this allows you to:

  • Reduce transcription error,
  • Reduce liability,
  • Speed up project delivery schedules.

Get Started TODAY!


Available version: LabMate Pro™
